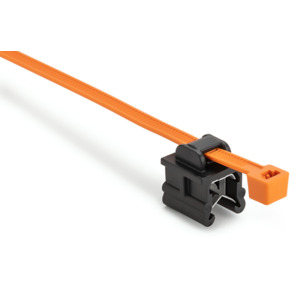

HellermannTyton 156-04057 Cable Tie, Edge Clip, 8"L, 50lb, EC19, 0.24" Panel, Orange, 500/Pkg
Our Part #10238052
Mfr Part #156-04057
HellermannTyton 156-04057 Cable Tie, Edge Clip, 8"L, 50lb, EC19, 0.24" Panel, Orange, 500/Pkg
Our Part #10238052
Condition:New
Mfr Part #156-04057
RoHS
$1.51EACH
Multiples of: 4,000
Condition:New
RoHS
- Description
- Specifications
- Documents
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mountinig hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge slip in place.
- Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
- Edge Clip provides low insertion force and high extraction force ideal for assembly environments.
- Two piece assembly allows the mount to slide along the strap ensuring proper orientation.
HellermannTyton's Two-Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
Brand: HellermannTyton
Type: Edge Clip
Package Quantity: 500 Per Pkg.
Series: EC Series
Bundle Diameter: 0.04" Min | 1.97" Max
Color: Black
Flammability Rating: UL 94 HB
Height: 0.31"
Length: 8.6"
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature Range: -40 to +230°F
RoHS Compliance: Yes
Tensile Strength: 80 lb.
Tooth Type: Inside Serrated
Width: 0.93"
$1.51EACH
Multiples of: 4,000
