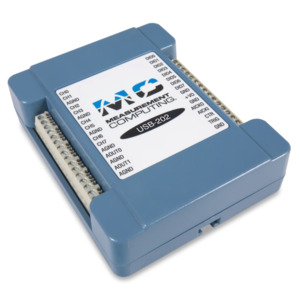

Digilent USB-202 USB DAQ

Features and Specifications

• Eight single-ended 12-bit analog inputs
• 100 kS/s max sample rate
• Two 12-bit analog outputs
• Eight individually configurable digital I/O channels
• 32-bit counter input
• Digital trigger input
• External pacer clock input
• Internal/external pacer clock output
• User voltage output
• Two screw terminal banks for field wiring connections

The USB-202 based DAQ device provides eight 12-bit analog inputs, 100 kS/s sampling, two 12-bit analog outputs, and 8 digital I/O lines. It is powered by the +5 V USB supply from your computer; no external power is required.

USB-200 Series Overview

The USB-200 Series of USB data acquisition (DAQ) devices provide higher sampling speeds compared to similarly priced 12-bit DAQ devices. Each device provides analog input, digital, and counter functions, and up to two analog outputs. OEM versions are available for embedded applications.

What's in the Box

• USB-202 USB DAQ
• USB cable
• MCC DAQ software
