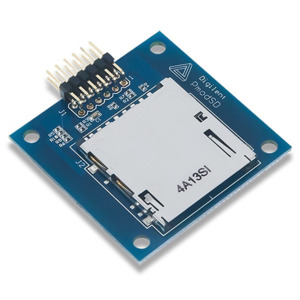

Diglient Pmod SD Full-sized SD Card Slot

Features and Specifications

• Full-sized SD card slot
• Store and access large amounts of date from your system board
• No limitation on file system or memory size of SD card used
• 1-bit and 4-bit communication
• 1.8 in × 1.8 in (4.6 cm × 4.6 cm) PCB size
• 12-pin Pmod connector with SPI interface
• 3.3V Logic Level

The PmodSD is a great way to store and access information on a device that can then be accessed by outside devices such as a phone or computer.

It allows system boards to read from and write to SD cards. With no limitation on the file system or memory size of the SD card, users will be able to store and access large amounts of data from their system board.

The PmodSD is designed to communicate with the host board primarily through the SPI protocol. By default, the SD card itself is defined to boot up in SD mode, but will enter into SPI mode when the Chip Select line is pulled low.

Pmod Series Overview

The Digilent Pmod (peripheral module) Series is a small, low-cost peripheral module that can be used with a wide range of embedded systems and development boards. It is designed to extend the capabilities of embedded systems and development boards by adding new features and functionality. The Pmod communicates with host boards using 6, 8 or 12-pin connectors that can carry multiple digital control signals, taking advantage of standard serial protocols such as SPI and I²C. This allows for more effective designs by routing analog signals and power supplies only where they are needed and away from digital controller boards.

What's in the Box

• Pmod SD
• Custom antistatic Pmod packaging
