Hammond Manufacturing

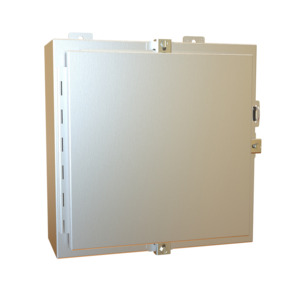

Hammond Manufacturing 1418N4SSG6 Type 4X Wall Mt. Encl., Hinge Door w/Panel, 16x16x6, 304 SS, 1418 N4 SS Series
Our Part #10284976
Mfr Part #1418N4SSG6
Hammond Manufacturing
Hammond Manufacturing 1418N4SSG6 Type 4X Wall Mt. Encl., Hinge Door w/Panel, 16x16x6, 304 SS, 1418 N4 SS Series
Our Part #10284976
Condition:NEW
Mfr Part #1418N4SSG6
$EACH
- Description
- Specifications
- Documents
- Formed 14 gauge 304 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door stiffeners are provided in the larger enclosures for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Formed lip on door and enclosure excludes flowing liquids and contaminants.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- Door is secured with easily operated stainless steel clamps.
- Provision for padlocking.
- Seamless poured-in place gasket.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mountÂing inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- A literature pocket is provided for the inside of the door.
Application
Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. It provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.Brand:Â Hammond Manufacturing
Depth:Â 6 in.
Height:Â 16 in.
Material:Â 304 Stainless Steel
Safety:Â CE, RoHS, UL, CSA
Series:Â 1418 N4 SS Series
Width:Â 16 in.
