Hammond Manufacturing

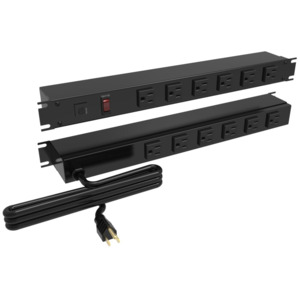

Hammond Manufacturing 1583T8B1BK Outlet Strip, 8 Outlets Back, 15 ft. cord, 15 A, Black, 1583 Series
Our Part #10285048
Mfr Part #1583T8B1BK
Hammond Manufacturing
Hammond Manufacturing 1583T8B1BK Outlet Strip, 8 Outlets Back, 15 ft. cord, 15 A, Black, 1583 Series
Our Part #10285048
Condition:NEW
Mfr Part #1583T8B1BK
$EACH
- Description
- Specifications
- Documents
- Designed for power distribution from the rear of the unit
- 1U horizontal 19" rackmount installation
- Available with an illuminated on/off rocker switch or red power indicator light
- Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type
- Rotated options include outlets with extra spacing for clearance of most plug-in transformers
- Heavy-duty 14 gauge wire cord - 14/3 SJT type for extreme temperature ranges and integral moulded plug
- Includes 15 Amp, 125 VAC circuit breaker to prevent accidental overload
- UL/cUL recognized Standard UL1363 File No. E166039 & CSA C22.2 No. 308-14 & CSA C22.2 No. 0.4-04
- Finished in RAL9005 black or ASA61 gray powder coat. Complies with the Greenguard guidelines for indoor air quality
- TAA-compliant for GSA Schedule purchases
- RoHS and REACH compliant
- Manufactured in North America Shielded Cord Specifications
- Shielded cord reduces EMI/ RFI and "dirty" power from utilities
- Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire
Metered Specifications
Unit includes - easy to read 0.37 inch high, red LED ammeter (1.38 x 0.88 inch display)Digital ammeter accuracy +/- 0.1 Amps
Surge Specifications
Surge-protected panels incorporate our surge module:Max Energy (Joules) is 1080 J
25000 Amp-rated MOV’s for 75,000 Amps of single pulse transient current
Voltage Protection Rating (Vpr) of 500V in all three modes (L-N, L-G, N-G)
Nominal Discharge Current (In) of 5kA
The green indicator light confirms surge module is active
​Internal protection will disconnect the surge module at the end of its useful life (and extinguish the green light) but will maintain power to the load, now unprotected
Voltage suppression at the outlet guards against transients from the equipment on the outlet strip
cRUus recognized to UL 1449 & C22.2 No. 269.3-17 & No. 269.4-17 for Surge Protective Devices - Type 3 & Type 4
cRUus recognized to UL 1363 & C22.2 No. 308-18 for Relocatable Power Taps & Multi Outlet Assemblies
Brand:Â Hammond Manufacturing
Color:Â Black
Dimensions:Â 1.72 x 19 x 2.66 in.
Safety:Â RoHS, TAA, UL, CSA
Series:Â 1583 Series
