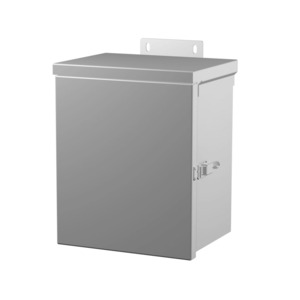

Hammond Manufacturing C3R1086HCR Type 3R J Box, Hinge Cover w/KO, 10 x 8 x 6, Galv Steel, Gray, C3R HCR SM Series
Our Part #10285076
Mfr Part #C3R1086HCR
Hammond Manufacturing
Hammond Manufacturing C3R1086HCR Type 3R J Box, Hinge Cover w/KO, 10 x 8 x 6, Galv Steel, Gray, C3R HCR SM Series
Our Part #10285076
Condition:NEW
Mfr Part #C3R1086HCR
$EACH
- Description
- Specifications
- Documents
- Formed and spot welded from 16 gauge galvanized steel.
- Drip-shield top and seam-free sides, front and back.
- Galvanized steel hinge has stainless steel pin.
- Provisions for padlocking on zinc-plated draw pull catch.
- Easily removed knockouts on bottom of enclosure.
- Panel studs provided for mounting optional panels.
- External mounting feet.
- Oil resistant gaskets are permanently secured.
Application
Designed for use as a wiring/junction box. It provides protection against rain, sleet, snow and dripping water.Brand:Â Hammond Manufacturing
Color:Â Gray
Depth:Â 6 in.
Height:Â 10 in.
IP Rating:Â IP24
Material:Â Galvanized Steel
Safety:Â RoHS, UL, CSA
Series:Â C3R HCR SM Series
Width:Â 8 in.
