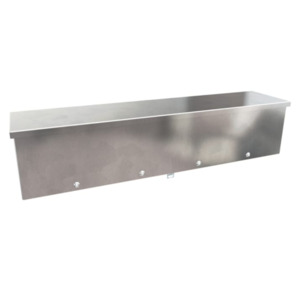

Hammond Manufacturing C3RWT824G Type 3R Wiring Trough, 8 x 8 x 24, Unpainted Galv. Steel, C3RWTG Series
Our Part #10285113
Mfr Part #C3RWT824G
Hammond Manufacturing C3RWT824G Type 3R Wiring Trough, 8 x 8 x 24, Unpainted Galv. Steel, C3RWTG Series
Our Part #10285113
Condition:NEW
Mfr Part #C3RWT824G
$204.66EACH
Condition:NEW
- Description
- Specifications
- Documents
- Formed and spot welded from 14 or 16 gauge galvanized steel
- Drip shield top design protects the enclosure against rain, snow or sleet
- Embossed mounting holes on back of enclosure
- Slip on removable front cover is secured with screws
- Padlocking hasp
- To fully comply with UL870 - 2008 requirements a bonding stud is provided on the cover and a ground stud is provided in the enclosure
- A #10 AWG - 12" grounding strap with crimped on ring terminals is also provided to comply with UL requirements
Application
Designed for use to protect multiple wiring junctions in outdoor environments against the ingress of rain, sleet, snow and the external formation of ice.Brand: Hammond Manufacturing
Depth: 24 in.
Height: 8 in.
IP Rating: IP24
Material: Galvanized Steel
Safety: RoHS, UL, CSA
Series: C3RWTG Series
Width: 8 in.
$204.66EACH
