Hammond Manufacturing HVPCI-238 Corrosion Inhibitor Spray, for Multi-Metals, Pack of 6 Cans, HVPCI Series
Our Part #10285241
Mfr Part #HVPCI-238
Hammond Manufacturing HVPCI-238 Corrosion Inhibitor Spray, for Multi-Metals, Pack of 6 Cans, HVPCI Series
Our Part #10285241
Condition:NEW
Mfr Part #HVPCI-238
Condition:NEW
- Description
- Specifications
- Documents
- Multi-Metal Cleaner Protector
- Instant corrosion protection
- Long-term multi-metal protection
- Minimized field service
- Increased corrosion protection at a lower cost than conventional rust preventatives
- CFC- and 1,1,1-Trichlorethane-free
- Vapor phase protection in vented or unvented enclosures
- May be used as a cleaning agent
- Moisture-displacing and penetrating film characteristics
- NSN #6850-01-413-9361 (aerosol form)

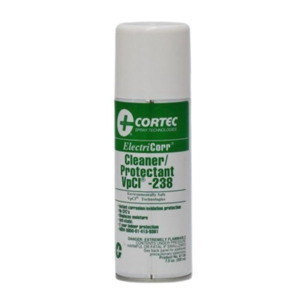

ElectriCorr VpCI-238 is an electronic cleaner containing Vapor phase Corrosion Inhibitor (VpCI). This cleaner is specifically formulated for electrical/ electronic equipment, and components. ElectriCorr VpCI-238 forms a thin film of Vapor phase Corrosion Inhibitors effective against aggressive environments including industrial, marine, and tropical climates. This film does not alter the electrical resistance or magnetic properties of metal substrates. ElectriCorr VpCI-238 can be safely applied to protect circuits or relays without causing any changes in conductivity. It can be safely used with most plastics, elastomers, and other nonmetallics.
ElectriCorr VpCI-238 is an effective inhibitor of galvanic corrosion for most metals and alloys normally found in electronics applications, such as aluminum, copper, ferrous, and other non-ferrous metals. ElectriCorr VpCI-238 is free of CFCs and 1,1,1-Trichlorethane. It provides instant corrosion protection. In cases where severe corrosion may occur, ElectriCorr VpCI-238 can be used along with VpCI-100 series impregnated foam devices for extended protection.
TYPICAL applications
Printed circuit boardsElectrical contacts and components
Electric motors
Corrosion protection of different metals in humid environment
Generators and junction boxes
Spray for use after final assembly or in the field
Independent Testing
ElectriCorr VpCI-238 has been tested by a worldrenowned laboratory under accelerated conditions per the Batelle Flowing Mixed Gas Test in a Class III environment. The results showed excellent multi-metal protection equivalent to a 7-years protection interval in an indoor electronics environment.How to Use
Dip part to be cleaned in VpCI-238 or spray with ElectriCorr VpCI-238. Remove excess by drip, wipe, or other conventional method. Dry time is approximately 1-2 hours at 700F and 50% relative humidity. Forced air is not recommended due to possible condensate and/or compressor oil contamination. The amount of ElectriCorr VpCI-238 necessary to maintain a sufficient concentration of vapors will depend on factors such as the efficiency of sealing enclosures (air circulation), volume of the enclosure, atmospheric conditions, and the density/porousness of the walls. It is effective for 6+ months with proper controls.
