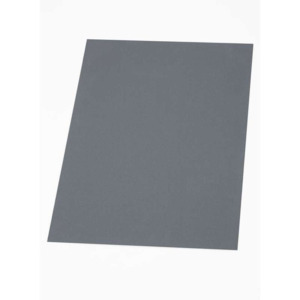

3M™ Thermally Conductive Silicone Interface Pad 5516S is the same as 3M Pad 5516 but with a polymeric permanent film on 1 side for ease of reworking an assembly. Thermal Conductivity and Impedance slightly changes, dielectric strength is improved.

Standard Lead Time: 49 Calendar Days

• Good thermal conductivity (3.1 w/m-K)
• Good softness and is conformable at low pressure ( Shore 00 =72)
• Softness results in low stress on board components
• Good dielectric properties
• “S” version incorporates a thin polymeric film carrier for improved handling and a non-tacky surface for ease of rework
• Slight tack allows pre-assembly
• Good wettability for better thermal conductivity
• UL 94 V-1

• Part Number: 5516S-10
• Width: 12.598 in
