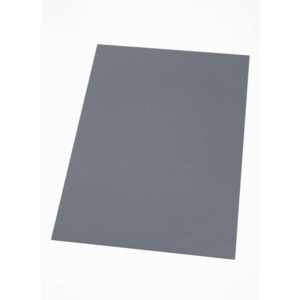

3M 7100011588 Thermally Conductive Interface Pad Sheet 5516, 320 mm x 230 mm 1.0 mm
Our Part #10297981
Mfr Part #7100011588
3M 7100011588 Thermally Conductive Interface Pad Sheet 5516, 320 mm x 230 mm 1.0 mm
Our Part #10297981
Condition:NEW
Mfr Part #7100011588
Has Expiration Date
RoHS
$55.23EACH
Multiples of: 120
Condition:NEW
Has Expiration Date
RoHS
- Description
- Specifications
3M™ Thermally Conductive Silicone Interface Pad 5516 is a highly conformable, slightly tacky silicone elastomer pad. Designed to provide heat transfer path between heat generating components and heat sinks, heat spreaders or other cooling devices.
Standard Lead Time: 49 Calendar Days
Features:- Good thermal conductivity (3.1 w/m-K)
- Good softness and is conformable at low pressure ( Shore 00 = 50)
- Softness results in low stress on board components
- Good dielectric properties
- Slight tack allows pre-assembly
- Good wettability for better thermal conductivity
- UL 94 V-0
- High temperature résistance
- Part Number: 5516-10
- Width: 12.598 in
Brand: 3M
Series: 5516 Series
Type: Thermally Conductive Interface Pad
Color: Gray
Width: 12.6"
Length: 9.06"
Alternate Product Number: 7100011588-31180
Applications: Provides Heat Transfer Path Between Heat Generating Components and Heat Sinks, Heat Spreaders or Other Cooling Devices
Material: Silicone
Shelf Life: 730 days
Thickness: 1 mm
