• SPEED PUNCH® saves time and money with every hole. Up to 3X's faster setup and disassembly. No-Thread punch design eliminates cross-threading.
• Available for: - Stainless Steel - 1/2" to 2" conduit size Mild Steel - 1/2" to 4" conduit size Metric ISO-16 to ISO-6322mm & 30mm for Oil tight push buttons.

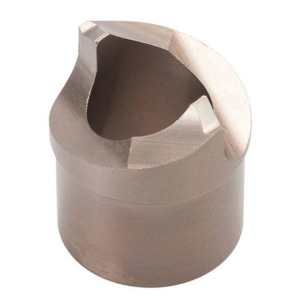

This is a 745SP-1-7/32P Greenlee Replacement Speed Punch


Product Details:

• Application : For punching holes in stainless steel, mild steel, aluminum, fiberglass, and plastic.
• Capacity Mild Steel : Max: 10 gauge (3.0 mm).
• Capacity Stainless Steel : Max: 10 gauge (3.0 mm).
• Diameter : Actual hole size: 1.210'' (30.5 MM)
• Draw Stud : Std. Draw Stud: 7212SP23 (3/4'' X 5.00'').
• Draw Studs : Alt. Draw Stud (Long): 7212SP21 (3/4'' x 5.83'') - For use with 746 Hydraulic Ram.
• Driver : Use with Greenlee Punch Drivers: 746 Hydraulic Ram & 767 Pump (or LS50L - Battery-Powered Driver up to max. 12 ga. stainless steel).
• Material : Tool Steel
• Minimum Pilot Hole : 7/8'' (22.2 mm)
• Operation : Must be used with other SPEED PUNCH® System components.
• Sub Brand : SPEED PUNCH®
• Type : Knockout Punches
• Weight : 0.25 lbs. (0.11 kg)
