• The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
• The crimping jaws open wide to fit easily over connectors
• In-line tool style is lightweight and very easy to control
• To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
• The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
• When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
• It is then ready to make the next crimp
• And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications

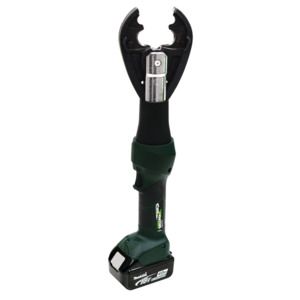

The Greenlee EK425LXD Series Crimper is equipped with Bluetooth™ communication, enabled via the Greenlee Gator Eye app. It features an LED display screen that communicates pressure, battery levels, and tool diagnostics with real-time feedback.

Product Details:

• Sub Brand : Gator
• Type : Die style crimper
• Application : 6 Ton Crimping
• Standard : C/US UL Listed
• Wire Size : Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
• Overall Length : 18.5 IN (470mm)
• Crimping Force : 12,000 lbs. (53 kN)
• Crimping Capacity : Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 - 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR
• Connector Type : Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color coded lugs & splices
• Handle Type : In-Line Style with over molded rubber grip
