• Near-field absorber is excellent for frequencies from 800 MHz - 2 GHz
• Operating frequency of 300 MHz - 2 GHz
• Polymer resin sheets are flexible for consistent coverage
• Filler consisting of soft metal flakes absorb noise into the polymer
• Acrylic pressure sensitive adhesive makes for fast, simple application
• Advanced EMI absorber vs AB5000HF series
• Removable liner makes material easy to handle
• Die-cuttable into shapes for precise fit
• Available in sheets and rolls for improved yield
• Halogen-free*

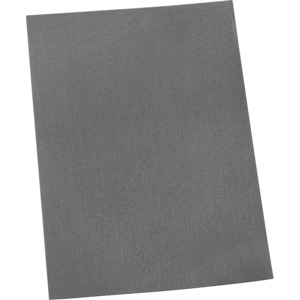

The 3M™ EMI Absorber AB5000SHF Series is a magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz - 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

The target frequency range the sweet spot for peak performance for 3M EMI Absorber AB5000SHF Series is 800 MHz - 2 GHz. Potential product usages include covering, attaching or wrapping to cables, camera modules, display CoF, FPCs, PCBs, semiconductor chips and sensors.
