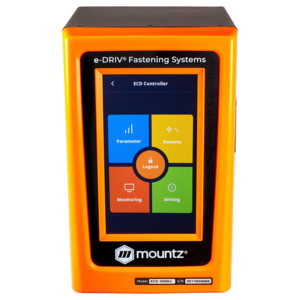

Mountz 313000 Controller, ECD-5000U, 120V

• Operates with Electric Screwdriver Models: EC-Series (50000 models)
• Preset selection capability: Front panel or 25P I/O
• Angle Control: 0.1 - 10 turns
• 15 Preset Parameters: Torque, Speed, Soft Start & Angle
• Auto-detection of a connected electric screwdriver when the controller is powered on
• Error display: Error code display (3 groups)
• Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time
• PC based program for parameter settings, monitoring, and real-time output
• Screw counting
• Front panel 7" Color LCD with touch screen
• 8 Input & 8 Output flexible I/O (25P D-Sub)
• Communication 1 x RS232C, 1 x Ethernet
• Protocol: Modbus, Open Protocol
• 4.0 MEMS system ready
• SD Card data memory slot (memory card included)
• Mounting bracket included

The ECD controller operates with only the EC-Series Smart Electric Screwdrivers (50000 models). It is a single tool controller that offers programmable speed, angle, auto-reverse, and soft start options. I/O interface for communication with external devices such as PLC.
