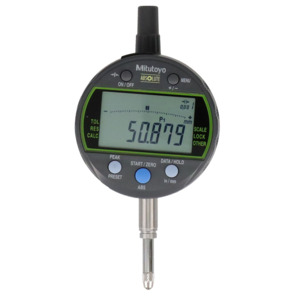

Mitutoyo 543-301B-10 Digimatic Indicator, Absolute, Pick Hold Type, with Flat Back, 543 Series
Our Part #10323076
Mfr Part #543-301B-10
Mitutoyo 543-301B-10 Digimatic Indicator, Absolute, Pick Hold Type, with Flat Back, 543 Series
Our Part #10323076
Condition:New
Mfr Part #543-301B-10
$576.00EACH
Condition:New
- Description
- Specifications
- Documents
- The new Peak Hold-Type Digimatic Indicator features both a Key-Lock and Parameter-Lock to prevent accidental changing of settings during operation.
- Parameter setting software makes it even eay to set all available parameters.
- An analog bar provides easy-to-read values when scanning for Max, Min and TIR Values.
- The maximum, minimum or runout value can be displayed during measurement.
- Go/no-go judgment is performed by setting the upper and lower tolerances for max., min. and runout values.
- High speed sampling ratio of 50 times/s.
- Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle Absolute Position from the origin when turned on.
Brand: Mitutoyo
Accuracy: ±.00010"
Resolution: .00005/.0001/.0005"
Alternate Product Number: ID-C112AMXB
Range: 0.5"
Series: 543 Series
