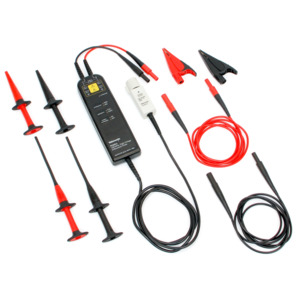

Tektronix TEX P5205A High-Voltage Differential Probe, 100MHz, 50X/500X, 2pF, 1300V, P52xxA Series

• 1.3 kV Differential
• 1 kV to Ground (Each Channel)
• 100 MHz
• 50X / 500X Attenuation
• No More Floating Your Scope Unsafely
• Excellent Signal Fidelity
• Easy Connection to ICs and Bus Bars
• Safe for User and DUT
• Power From TekProbe Interface

Tektronix P5205A is a 100 MHz Active Differential Probe capable of measuring fast rise times of signals in floating circuits. This 1,300 V differential probe can safely measure voltages in IGBT circuits such as motor drives or power converters. It is specifically designed to operate on Tektronix oscilloscopes with TekProbe® interface.

P52xxA Series probes are equipped with the Tektronix TekProbe® interface which communicates scale information to the oscilloscope. Direct connections can be made to oscilloscopes configured with the TekProbe® interface or to any oscilloscope when used with the 1103 TekProbe® Power Supply.
