Tektronix P6015A High-Voltage Passive Probe, Single-Ended, 75MHz, 1000X, 3 pF, 20 kV, P-Series
Our Part #10870.1
Condition:New
Mfr Part #P6015A
- Description
- Specifications
- Documents
Tektronix P6015A 1000:1 75 MHz Passive Oscilloscope Probe
Features and Specifications- DC to 75 MHz
- High Voltage - 15 kV DC / 40 kV Peak (100 ms Pulse Width)
For heavy-duty high-performance measurements of voltages over 2.5 kV, the P6015A is the industry standard. You can measure DC voltages up to 20 kVRMS and pulses up to 40 kV (peak, 100 ms duration). The 75 MHz bandwidth enables you to capture fast, high-voltage signals.
The P6015A uses an environmentally safe silicone compound for a dielectric and never needs refilling. Other features include: A 7-49 pF compensation range, small compensation box that fits on adjacent amplifier inputs, and a readout option for use with most Tektronix digital scopes. With the readout option, displayed voltage amplitude values will be the actual signal value rather than understated by a factor of 1,000.
Note: Using the readout version with other than Tektronix digital oscilloscopes may result in an erroneous readout display.
A high voltage single-ended probe is typically used for measuring ground referenced signals up to 40 kV. However, some single-ended probes are designed for oscilloscopes with isolated or floating inputs for measurements that are not ground referenced.
Users should select probes with a low input capacitance specification (< 4 pF) to minimize the probe’s loading effect on the circuit because a probe with lower input capacitance will offer higher input impedance at higher frequencies.

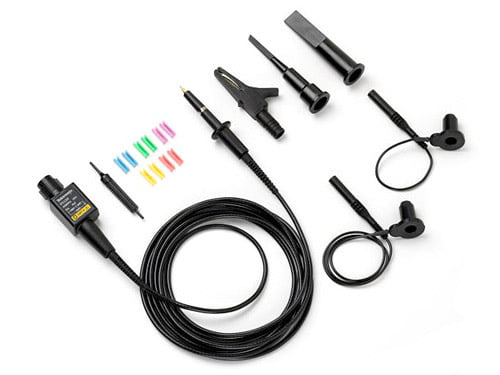

Tektronix High Voltage Probe solutions offer:
Best-in-class bandwidth up to 800 MHz
Best-in-class probe loading with input capacitance as low as 1.8 pF
The only products with 3rd Party Safety Certification (UL, CSA, ETL)
Most extensive set of probe accessories
Characteristic | P5100A | TPP0850 | P5122 | P6015A | P6015A Opt. 1R |
|---|---|---|---|---|---|
Nominal Length | 2 m | 1.3 m | 1.2 m | 3 m | 3 m |
Attenuation | 100X | 50X | 100X | 1000X | 1000X1000X |
Bandwidth | 500 MHz | 800 MHz | 200 MHz | 75 MHz | 75 MHz75 MHz |
Rise time (typ) | <700 ps | <545 ps | 2.2 ns | 4.0 ns | 4.0 ns4.0 ns |
Loading | 40 MΩ/ 2.5 pF | 40 MΩ/ 1.8 pF | 100 MΩ/ 4.0 pF | 100 MΩ/ 3.0 pF | 100 MΩ/ 3.0 pF |
Maximum Input Voltage, DC or RMS | 2.5 kV Peak 1000 VRMS CAT II | 2.5 kV Peak 1000 VRMS CAT II | 1000 VRMS CAT II | 15 kV | 15 kV |
Maximum Float Voltage | N/A | N/A | 600 VRMS CAT II | N/A | N/A |
Compensation Range (pf) | 7 to 30 | N/A | 10 to 22 | 7 to 49 | 7 to 49 |
Readout | Yes | Yes | No | No | No |
Applications
- Power supply design
- Design motor drive
- Electronic ballast
- Power semiconductors
- Switch mode control
- UPS systems
- Power converters
In The Box
- Hook probe tip
- Banana plug tip
- Crocodile clip - plugs onto ground lead
- Ground lead
- Carrying case
- Instruction manual
- Probe tip
