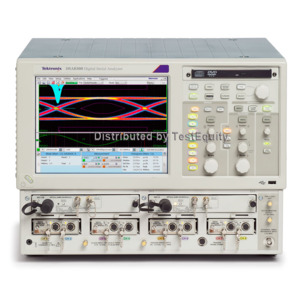

DSA8300 Digital Serial Analyzer Sampling Oscilloscope

Key performance specifications

• Low time base jitter:
• 425 fs typical on up to 8 simultaneously acquired channels
• <100 fs on up to 6 channels with 82A04B phase reference module
• Industry’s highest vertical resolution – 16 bit A/D
• Electrical resolution: <20 µV LSB (for 1 v full range)
• Optical resolution from <20 nW for the 80C07B (1 mW full range) to <0.6 µW for the 80C10C (30 mW full range)
• Optical bandwidths to >80 GHz
• Electrical bandwidths to >70 GHz
• Over 120 automated measurements for NRZ, RZ, and pulse signal types
• Automated mask testing with over 80 industry-standard masks
• Complex jitter/noise/BER/SER analysis (80SJNB), support for complex measurements TDECQ 1, SNDR 2 (applications)

The DSA8300 is a state-of-the-art Equivalent Time Sampling Oscilloscope that provides the highest fidelity measurement and analysis capabilities for Communications Signal Analysis, Serial Data Network Analysis, and Serial Data Link Analysis applications.

Includes

• W7 Windows 7
