• Max VSWR of 1.3:1 up to 40 GHz
• Gold over Nickel Plated Beryllium Copper Contact
• Contact Plating per MIL-G-45204

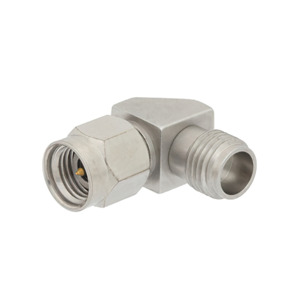

Pasternack’s PE91112 2.4mm female to 2.92mm male right-angle adapter has a female-to-male gender configuration and is built of durable stainless steel. It operates up to 40 GHz. The 2.4mm connector mates mechanically with commercially available 1.85mm (V) connectors. The Pasternack RF adapter provides a good VSWR of 1.3:1 maximum. This low-profile right-angle 2.4mm to 2.92mm adapter allows for easier connections in tight spaces.

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment, especially where the number of connect/disconnect cycles is high. An RF, microwave, or millimeter-wave adapter is connected to the equipment, while the commonly changed connection is made with the adapter, which can be easily replaced when it wears out after extensive use; such adapters are referred to as connector savers.
