$EACH
Has Expiration Date
- Description
- Specifications
- Pressure-sensitive, thermosetting, rubber adhesive has polyester film backing that provides optimized adherence
- Suitable for use as a coil cover and as layer insulation
- Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
- UL Listed and RoHS 2011/65/EU Compliant

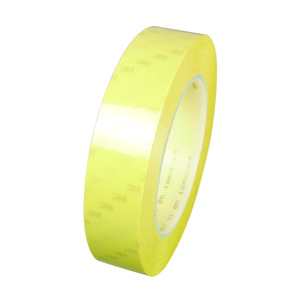

3M™ Polyester Film Electrical Tape 56 is a moisture resistant, electrical tape. This tape is suitable for insulating applications that require high dielectric strength. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).
3Mâ„¢ Polyester Film Electrical Tape 56 is highly conformable with a thermosetting, rubber adhesive. This tape has a polyester film backing and offers excellent resistance to chemicals, solvents, moisture, abrasion and cut through. UL Listed and RoHS 2011/65/EU Compliant.
Brand:Â 3M
Length:Â 216 ft.
Width:Â 0.25"
Color:Â Yellow
Thickness:Â 2.3 mm
Adhesive Material:Â Rubber
Alternate Product Number:Â 56-Y-1/4in X72YD
Backing Material:Â Polyester
Breaking Strength:Â 25 lb./in.
Dielectric Breakdown:Â 5500 V
Series:Â 56 Series
Shelf Life:Â 1825 days
Temperature Rating: 266°F
$EACH
