• Wavelength Response 500 to 950 nm
• High-bandwidth DC up to 1.2 GHz
• High Gain 1 V/mW
• Low Noise
• Probe Connects to DPO7000* and DPO/MSO70000** Series
• SONET/SDH and Fibre Channel Reference Receiver Performance:
  • TDS500C/700C (Opt. 3C or 4C)
  • P6701B – Fibre Channel up to 1063 Mb/s
  • P6703B – SONET/SDH up to 622 Mb/s

*Requires the TPA-to-BNC adapter
**Requires the TCA-to-BNC adapter

Tektronix P6700 Series optical-to-electrical (O/E) converters change optical signals into electrical signals for convenient analysis on Tektronix DPO7000 and DPO/MSO70000 Series oscilloscopes with appropriate adapters (see footnote 1 and 2), any other Tektronix oscilloscope equipped with a TekProbe interface, or when used with the 1103 TekProbe power supply. The P6700 Series O/E converters are ideal for optical source characterization in the development, manufacture, or service of optical communication systems and devices.

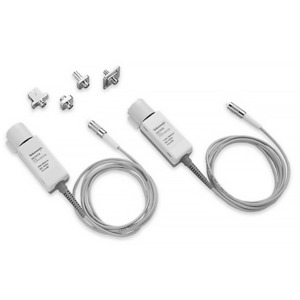

Small, conveniently packaged P6701B optical-to-electrical analog converters provide an accurate interface for optical pulse shape measurements. The high gain, large dynamic range, and stable output offset of these O/E converters make them ideal for performing eye pattern analysis and extinction measurements.

The P6701B/P6703B optical input is a 1 meter, 62.5μ Multi Mode fiber with an FC/PC connector. Using the standard assortment of hybrid fiber-optic mating sleeves, these O/Es can accommodate the various industry connector standards.

The TekProbe interface provides power, auto-scaling, auto-termination, and correct units (microwatts) when used with Tektronix DPO7000 or DPO/MSO70000 and earlier TekProbe-equipped Series oscilloscopes.
