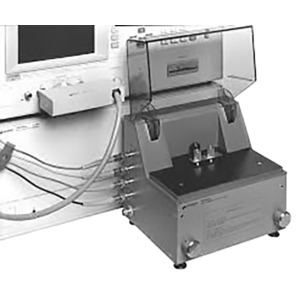

42842C Bias Current Test Fixture (Obsolete)

Specs:

• DUT Connection: 2-Terminal
• Bias Voltage Output connector: BNC(f)
• Dimensions (approx.): 213(W) x 173(H) x 235(D) [mm]
• Weight (approx.): 3100g

This test fixture is designed for use with the 42841A. It is connected directly to the bias current output terminals of the 42841A. The following features ensure accurate and safe DC bias measurements:

• Clear plastic cover is for safe measurements
• Opening the cover decreases the voltage generated by back-e.m.f. (electromotive force) to a level below 40 V within 0.1 second
• Heat-sensitive switch prevents DUT from overheating
• Also equipped with DC bias voltage monitoring
• Operating Temperature: 0C to 45C
• DUT Size: Smaller than 60(W) x 50(H) x 60(D) [mm]
