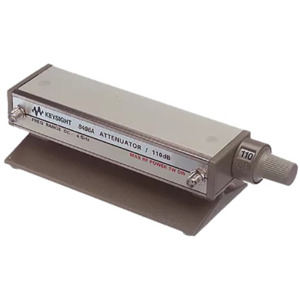

8496A/001 Manual Attenuator

Configurations: (001) RF connection type of Type-N (f) connectorss

Key Features and Specifications:

• Frequency range: dc to 4 GHz
• Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
• Maximum SWR: 1.5
• Repeatability life: 0.03 dB max 5 million cycles per section, typical
• Life span: 5 million cycles per section
• Maximum RF input power: 1 W (average), 100 W (peak)
• Connector type: choice of Type-N female, SMA female, APC-7
• Connect in series with 11716A Attenuator Interconnect Kit, Type-N
• Connect in series with 11716C Attenuator Interconnect Kit, SMA

The Keysight 8496A dc to 4 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 110 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.
