• Single, dual and triple models from 30 W to 125 W
• Constant voltage or constant current
• Coarse & fine voltage controls
• Individual on/off switch per output (not including fixed output on Triple)
• All linear regulation, <0.01%
• Ripple <1 mV rms
• Convection cooling, no fans
• 3-Year warranty

TestEquity is an authorized U.S. stocking distributor for Sorensen bench power supplies.

High Performance at Low Cost

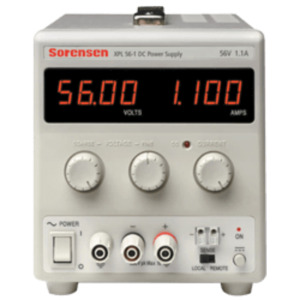

The Sorensen XPL Series of DC bench power supplies has been designed to meet the need for a compact power supply of good performance at a reasonable price. They provides medium levels of power, up to 125 watts, with fan-free cooling for silent operation.

Linear Regulation
The XPL Series uses all linear regulation for the best possible performance. Excellent line and load regulation is matched by very low output noise and good transient response.

Simultaneous Digital Metering
The XPL Series incorporates separate digital voltage and current meters on each main output. The meters use bright 14mm (0.56") LED displays and have an update rate of 4 readings per second providing near instantaneous response. Simultaneous metering of voltage and current provides accurate information at a glance and avoids any possibility of misinterpretation. When an output switch is set to "off", the current limit setting is displayed enabling conditions to be set before the load is connected.

Constant Voltage or Constant Current
The main outputs can operate in constant voltage or constant current mode with automatic crossover and mode indication. Coarse and fine voltage controls are provided. The current control is logarithmic enabling low current levels to be set accurately.

Single, Dual or Triple outputs
The XPL Series includes four single output models, plus one dual and one triple output model. The XPL30-2D and XPL30-2T have two independent and isolated outputs each with a 0 to 30 V, 0 to 2 A capability and its own on-off switch. The outputs can be wired in either series or parallel to provide voltages up to 60 V or currents up to 4 A. All outputs are intrinsically short circuit proof, and are protected against external voltages and reverse currents.

Ready for Low-Voltage Logic
To reflect the increasing usage of low-voltage logic devices, the third output of the XPL30-2T can be switched adjusted between 1.5 V and 5 V.
