84906K Programmable Step Attenuator

Configurations:

• Option 024 Solenoids -
  Coil voltage: 24V (20 to 30V)
  Switching Current: 125 mA (at 24V)
  Nominal coil impedance: 190 Ohm
• Option 004 Connector -
  1.3 - dc to 12.4 GHz
  1.7 - 12.4 GHz to 34 GHz

Features:

• maximum RF input power at 1 W (average), 50 W (peak)
• connector type is a choice of 3.5 mm female, 3.5 mm male / female
• programming connector has 10-pin sockets

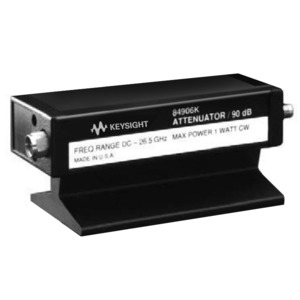

The Keysight 84906K programmable step attenuator offers coaxial measurements to 26.5 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, greater than five million switching cycles per section, and an attenuation range of 0 to 90 dB in 10 dB steps.

This latest design evolution sets new standards for size and performance. You can achieve high attenuation accuracy and low standing wave ratio (SWR) through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of sapphire substrate. Insertion loss is less than 2 dB of loss at 26.5 GHz. The compact size of the unit allows for easy integration into instruments and ATE systems.
