Keysight N6732B Basic DC Power Module, 1-Slot, 8V, 6.25A, 50W, N6730 Series

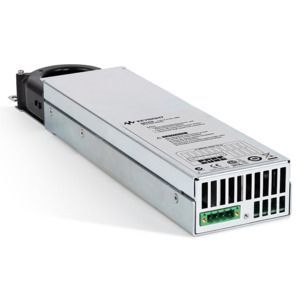

Keysight N6732B DC Power Module

The Keysight N6732B 50 W Basic DC Power Module provides programmable voltage and current, as well as measurement and protection features at an economical price. This single-slot module is designed for use with either the N6700 Low-Profile Modular Power System, a 1U multiple-output mainframe for ATE applications, or the N6705 DC Power Analyzer, a multiple-output mainframe for bench testing. Both mainframes are sold separately and include GPIB, LAN, and USB interfaces, and LXI compliance, as standard features.

Key Features

• Maximum current: 6.25 A

• Maximum power: 50 W

• Maximum voltage: 8 V

• Number of outputs: 1

• Auxiliary Voltage Measurement Input: No

• Measurement accuracy: 40 mV

• Ripple & noise: 12 mVpp

• Data logger, LIST mode, 4-wire remote sense, arbitrary waveform generation

What's in the Box

• N6732B DC Power Module, 8 V, 6.25 A, 50 W

• KeysightCare Technical Support - 3 years

• Return to Keysight Warranty - 3 years

Keysight N6732B DC Power Module FAQ

• How fast is the N6732B output response time?
  The N6732B has an output response time of approximately 0.2 ms, making it suitable for applications that require rapid voltage changes.

• Does the N6732B support arbitrary waveform generation?
  Yes. The module supports arbitrary waveform generation, allowing users to simulate changing power conditions and dynamic load scenarios.

• What application is the N6732B suitable for?
  The N6732B provides programmable current along with protection features making it capable of powering a DUT or providing power for ATE resources such as fixture controls.
