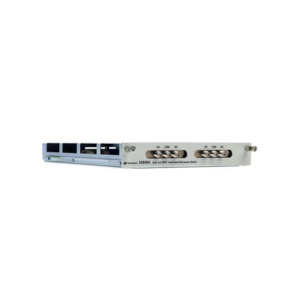

Keysight 34946A/004 Dual 1x2 SPDT Terminated Microwave Switch Module 4 GHz

17000.6 MFG #: 34946A/004
$2,720.00 / EA
  • Condition: New
  • Drill Down Description: Dual 1x2 SPDT Terminated Microwave Switch Module, 4 GHz
  • Model: 34946A/004
  • Quote Required: No
  • Web Meta Description: If you are searching for a 34946A Switch Module, TestEquity can provide the solution you need. We carry the best electronic test & measurement solutions from top manufacturers.
  • S3 Part Number: 17000.6

  • Description

    34946A with Option 004 Dual 1x2 SPDT Terminated Microwave Switch Module for 34980A

    • Two SPDT terminated switches
    • Option 004: 2 x N1810TL 4 GHz switches installed
    • High isolation, low VSWR
    • Up to 50W switching
    • SMA connectors
    • External switch mounting option

    The Keysight 34946A microwave switch for the 34980A Multifunction Switch/Measure Unit offers bi-directional switching for test signals from DC to 26.5 GHz (option dependent). These switches provide excellent insertion loss, isolation, and VSWR specification.

    The microwave switches are configured as two independent 1x2 (SPDT) terminated switches on a single module. For general-purpose microwave switching applications, the module can be used to switch separate signal sources for a multi-band receiver/transmitter testing application.

    Requires standard 50 ohm SMA cables and adapters.
