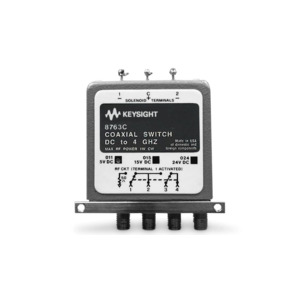

The 8764C offers excellent electrical and mechanical performance with broadband operation, high isolation, low SWR, long life, and exceptional repeatability.

Configurations:

• (024) 24V solenoids (without TTL logic)

Features:

• Frequency range DC to 26.5 GHz
• Unterminated multiport coaxial switch with five RF ports
• Insertion loss: < 0.20 dB to 2 GHz, < 0.5 dB to 18 GHz, < 1.25 dB to 26.5 GHz
• SWR (through line): < 1.15 to 2 GHz, < 1.25 to 12.4 GHz, < 1.4 to 18 GHz, < 1.8 to 26.5 GHz
• Isolation: < 90 dB to 18 GHz, < 50 to 26.5 GHz
• Long life < 1 million cycles
• High repeatability: < 0.03 dB typical
• Current interrupts and position indication capability
