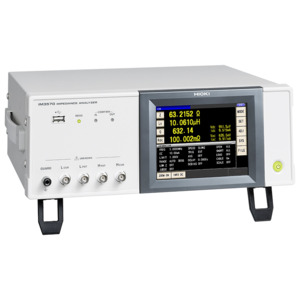

Hioki IM3570 LCR Tester

18737.1 MFG #: IM3570
$9,995.00 / EA
  • Condition: New
  • Drill Down Description: LCR Tester
  • Model: IM3570
  • Quote Required: No
  • Web Meta Description: If you are searching for a Hioki IM3570 LCR Tester, TestEquity can provide the solution you need. We carry the best electronic test & measurement solutions from top manufacturers.
  • S3 Part Number: 18737.1

  • Description

    Inductance, Capacitance, Impedance measurement

    • LCR measurement, DCR measurement, sweep measurement, continuous measurement and high-speed testing achieved with one instrument
    • High-speed testing, achieving maximum speeds of 1.5ms (1 kHz) and 0.5ms (100 kHz) in LCR mode
    • High-accuracy measurements, basic accuracy of Z parameter: ± 0.08%
    • Perfect impedance analyzer for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers)
    • Perform frequency sweeps, level sweeps, and time interval measurements in analyzer mode
    • 1-Year Warranty
    • Requires measurement probes or test fixtures

    With this new IM3570 Impedance Analyzer, an LCR meter and an impedance analyzer capable of measurement frequencies of 4 Hz to 5 MHz and test signal levels of 5 mV to 5 V have been combined into one measuring instrument. Advanced capabilities include LCR measurement with AC signals, resistance measurement with direct current (DCR), and sweep measurement which continuously changes the measurement frequency and measurement level.

    The IM3570 facilitates high-speed continuous measurement under different measurement conditions and measurement modes, so inspection lines which up to now have required multiple measuring instruments can be equipped with just one device.

    Basic specifications
    Measurement modes LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode
    Measurement parameters Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
    Measurement range 100 mΩ to 100 MΩ, 12 ranges (All parameters are determined according to Z)
    Display range Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only
    θ : ±(0.000° to 999.999°), D : ±(0.000000 to 9.999999)
    Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)
    Basic accuracy Z : ±0.08%rdg. θ: ±0.05°
    Measurement frequency 4 Hz to 5 MHz (10 mHz to 100 Hz steps)
    Measurement signal level V mode/CV mode (normal mode):
      50 mV to 5 Vrms, 1 mVrms steps (up to 1 MHz),
      10 mV to 1 Vrms, 1 mVrms steps (over 1.0001 MHz)
    CC mode (normal mode):
      10 μA to 50 mArms, 10 μArms steps (up to 1 MHz)
      10 μA to 10 mArms, 10 μArms steps (over 1.0001 MHz)
    Output impedance Normal mode: 100 Ω
    Low impedance high accuracy mode: 10 Ω
    Display 5.7-inch color TFT, display can be set to ON/OFF
