B&K Precision 1652 DC Power Supply, Triple Output, 2x 24 V / 500 mA, 5 V / 4 A, 44 W, 1650 Series

Name: B&K Precision 1652 DC Power Supply, Triple Output, 2x 24 V / 500 mA, 5 V / 4 A, 44 W, 1650 Series
Brand: B&K Precision
SKU: 18755.1
Price: 668 USD
Availability: OutOfStock

Our Part #18755.1

Mfr Part #1652

B&K Precision

B&K Precision 1652 DC Power Supply, Triple Output, 2x 24 V / 500 mA, 5 V / 4 A, 44 W, 1650 Series

Our Part #18755.1

Condition:New

Mfr Part #1652

$668.00EACH

Manufacturer Lead Time :92 Days

Qty:

Description
Specifications
Documents

Description

Digital Meters
Two 0 to 24 VDC outputs (0 to 500 mA)
One fixed 5 V output (4 A)
Independent or tracking operation
Adjustable current limiting
Designed to operate continuously at rated output
Short circuit protection, over voltage protection, reverse polarity protection
Connect outputs in series for higher voltage output or in parallel for higher current output (switch selectable)
1 Year Warranty

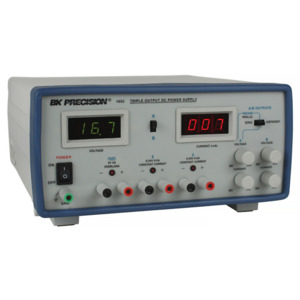

B&K Precision Model 1652 Triple Output DC Power Supply has two 0-24 VDC outputs capable of supplying 0-500 mA, and one fixed 5 VDC output capable of supplying up to 4 A. Connect the 0-24 VDC outputs in series for higher voltage or connect in parallel for higher current output (switch selectable). Voltage and current metering is provided by two analog meters. This unit is fully short circuit, overload, and reverse polarity protected. The B&K Precision Model 1652 is an excellent replacement for the discontinued Tektronix CPS250, with the addition of digital meters.

Specifications

Brand: B&K Precision

Number of Outputs: Triple Output

Output Voltage: 5V, 24V x 2

Output Current: 500mA x 2, 4A

Power Rating: 44 W

Input Voltage: 108-132 VAC

Interface: None

Special Features: Series, Parallel Modes

Display: LED

Series: 1650 Series

Mounting Type: Bench Top

Programmable: No

Documents

Data Sheet (pdf, 87K)

Manual (pdf, 2.5M)
