8471E/301 Planar-Doped Barrier Diode Detector, 0.01 to 12 GHz

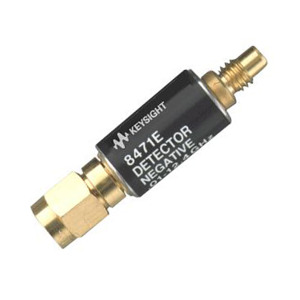

The low-cost 8471E planar-doped barrier detector provides excellent performance from 10 MHz to 12 GHz. It has an SMA male input connector and an SMC male output connector.

Configurations:

• (301) Negative Polarity Output

Superior RF Performance

• Frequency Response: ± 0.23 dB to 4 GHz, ± 0.6 dB to 8 GHz, ± 0.85 dB to 12 GHz
• Maximum SWR: 1.2 to 4 GHz, 1.7 to 8 GHz, 2.4 to 12 GHz
• Low Level Sensitivity: > 0.5 mV/uW

Power Handling

• Maximum Operating Input Power: 200 mW
• Typical Short-term Maximum Input Power (< 1 minute): 0.7 W

Compatibility

• Output Polarity: Negative
• Input Connector: SMA male
• Output Connector: SMC male

Keysight Technologies, Inc. Planar-Doped Barrier (PDB) detectors, combines the best characteristics of point-contact and low barrier Schottky to provide performance never before achievable. This PDB diode technology provides detectors with broadband-flatness, excellent square-law response, and low SWR.
