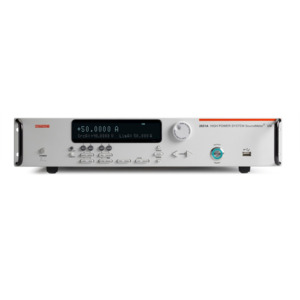

Keithley 2651A High Power SourceMeter

19162.1 MFG #: 2651A
$22,000.00 /
  • Amps: 20
  • Voltage: 40
  • Watts: 200
  • Condition: New
  • Drill Down Description: High Power SourceMeter
  • Model: 2651A
  • Quote Required: No
  • Web Meta Description: Keithley 2651A High Power SourceMeter. TestEquity offers various delivery options to help meet your deadlines.

  • Description

    • Source or sink:
      • 2,000W of pulsed power (±40V, ±50A)
      • 200W of DC power (±10V@±20A, ±20V@±10A, ±40V@±5A)
    • Easily connect two units (in series or parallel) to create solutions up to ±100A or ±80V
    • 1pA resolution enables precise measurement of very low leakage currents
    • 1µs per point (1MHz), continuous 18-bit sampling, accurately characterizes transient behavior
    • 1% to 100% pulse duty cycle for pulse width modulated (PWM) drive schemes and device specific drive stimulus
    • Combines a precision power supply, current source, DMM, arbitrary waveform generator, V or I pulse generator with measurement, electronic load, and trigger controller - all in one instrument
    • Includes TSP® Express characterization software, LabVIEW® driver, and Keithley's Test Script Builder software development environment

    The high power Keithley 2651A SourceMeter SMU Instrument is specifically designed to characterize and test high power electronics. This SMU instrument can help you improve productivity in applications across the R&D, reliability, and production spectrums, including high brightness LEDs, power semiconductors, DC-DC converters, batteries, solar cells, and other high power materials, components, modules, and subassemblies.

    Model 2651A, like every Series 2600A SourceMeter instrument, offers a highly flexible, four quadrant voltage and current source/load coupled with precision voltage and current meters. It can be used as a:

    • Semiconductor characterization instrument
    • V or I waveform generator
    • V or I pulse generator
    • Precision power supply
    • True current source
    • Digital multimeter (DCV, DCI, ohms, and power with 6-1/2 digit resolution)
    • Precision electronic load

    Includes: 2651A-KIT-1A: 1m Low Impedance Cable Assembly, CS-1592-2: High Current Phoenix Connector (male), CS-1626-2: High Current Phoenix Connector (female), CA-557-1: Sense Line Cable Assembly (1m), 7709-308A: Digital I/O Connector, CA-180-3A: TSP-Link/Ethernet Cable, Documentation CD, Software Tools and Drivers CD.
