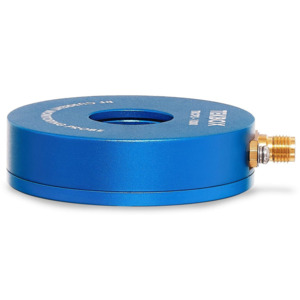

TBCP3-1000 Current Monitoring Probe

Specs:

• Frequency range: 30 kHz to 1 GHz
• SMA female connector type
• 20 dB Ohm transfer impedance
• 125 Max. core temperature

The TBCP3-1000 is a fixed aperture RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 1 GHz and is characterized and usable over the frequency range from 30kHz to 1 GHz.

The aperture of the RF current monitoring probe is 17 mm. Its transfer impedance is close to 20 dB Ohm in the range from 3 MHz to 1 GHz.
