TestEquity
Information notification
Due to ongoing tariff updates, pricing is subject to change and may not reflect the latest surcharges.
ITECH
ITECH

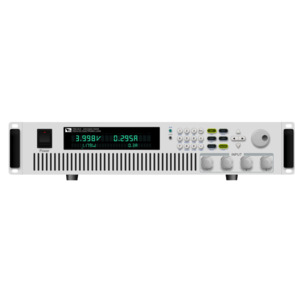

ITECH IT8514C+ DC Electronic Load, 1500 W, 240 A, 120 V, IT8500+ Series

Our Part #20000505

Mfr Part #IT8514C+

ITECH IT8514C+
ITECH
ITECH

ITECH IT8514C+ DC Electronic Load, 1500 W, 240 A, 120 V, IT8500+ Series

Our Part #20000505

Condition:New

Mfr Part #IT8514C+

RoHS
$2,270.00EACH
Quantity on Order:5
RoHS

ITECH IT8500+ Programmable DC Electronic Load

IT8500+series (150W-3000W) single-channel programmable DC electronic loads are designed for middle and high-end applications. They can be offered as multiple solutions according to a customer's design and testing requirements. The user can perform online voltage measurements and adjustments, or simulate short circuit test using the simple keypad on the front panel. IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies, batteries, DC to DC converters, and battery chargers thus giving users the best testing solution.

IT8500+ Series Specification:
  • Four operating modes: CV,CC,CR,CP
  • Battery test function, automatic test function, OPP test, OCP test function and CR-LED function.
  • Dynamic mode up to 10KHz
  • Voltage measurement resolution up to 0.1mV / 0.1mA
  • Remote sense
  • Short circuit function
  • Current monitoring function
  • Power-off memory function
  • 100 groups memory capacity
  • Optional USB / RS232 / RS485 interface
  • * IT8514B+, IT8514C+ and IT8516C+ have built-in RS232 and USB interfaces.

BrandITECH
Power Range Selector1,000-2,499
Current Range Selector200-499
Voltage Range Selector100-199
Maximum Power1.5 kW
Maximum Current240 A
Maximum Voltage120 V
Mounting TypeRack Mount
SeriesIT8500+ Series
IncludesPower cord, Factory calibration certificate
InterfaceUSB,RS232
Number of OutputsSingle Output
$2,270.00EACH
Quantity on Order:5
