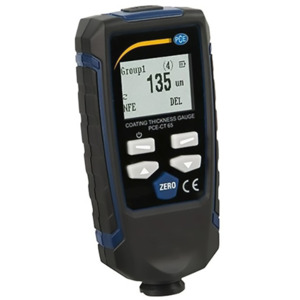

PCE Instruments PCE-CT 65 Coating Thickness Meter for Ferrous and Non-Ferrous Metals

Our Part #20000666

Mfr Part #PCE-CT 65

PCE Instruments PCE-CT 65
PCE Instruments
PCE Instruments

PCE Instruments PCE-CT 65 Coating Thickness Meter for Ferrous and Non-Ferrous Metals

Our Part #20000666

Mfr Part #PCE-CT 65

$297.00EACH

  • Measures ferrous and non-ferrous metal substrates
  • Includes calibration shims and blocks for DIY accuracy testing
  • Type F and Type N measuring range: 0 - 1350 um (0 - 53.1
  • Type F measuring principle: magnetic induction
  • Type N measuring principle: Eddy current
  • Saves up to 1500 measurements to memory
  • Comes with a USB cable and downloadable PC software
  • Alarm function, display lighting, automatic shutdown, calibration, memory function

The PCE-CT 65 is a Thickness gauge that uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications.

The easy-to-use downloadable PC-compatible software included with this thickness gauge allows for detailed analysis of measurement results via computer. Measurement values are shown in a table and different working modes can be selected for data filtering. Statistics include the maximum, minimum and average value per working group. Statistics can be divided by ferrous and non-ferrous materials. The software also counts how many readings have been stored in each material group. For more details, please refer to the user manual.

What's in the Box

  • 1 x PCE-CT 65 Thickness gauge
  • 2 x 1.5V AAA batteries
  • 5 x Calibration shims
  • 2 x Calibration blocks (aluminum and iron)
  • 1 x USB cable
  • 1x Carrying case
  • 1x User Manual

BrandPCE Instruments
Battery Type1.5V AAA
IO InterfaceUSB
MemoryInternal Memory
Power SupplyBattery Powered
Safety RatingCE, FCC, RoHS
Units of Measurementµm, mils
Warranty2 Years
$297.00EACH
