• Test range: 10 – 60 MPa or 100 – 600 kg/cm2 (1450.38 – 8702.26 psi)
• Non-destructive concrete testing
• Voice functionality
• USB data interface
• Memory: up to 200 values
• Includes software for data processing
• Adjustable backlight brightness and energy-saving automatic shutdown
• Pump marking, measuring curve, carbonation depth and upper / lower permissible value limit settings
• Impact energy: 2.207 J or N-m (1.6278 ft-lb)
• Radius of spherical tip: 25 ± 1 mm (0.99 ± 0.04 in)

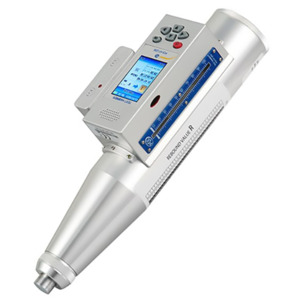

The PCE-HT 225E is a durometer or concrete test hammer, also called a concrete rebound hammer or Swiss hammer, used for non-destructive measurements of surface hardness and compression strength. Suitable for use with concrete, rock, and building materials, this rebound hammer features a direct digital display, voice functionality, a USB port data interface, and memory for storing up to 200 measurement values.

The manufacturer-calibrated concrete test hammer clearly shows the measured values directly on the attached LCD screen, making the results easy to read. The USB port allows for data transfer to a PC or printer. PC software for data processing is included in the delivery contents.

What's in the Box

• 1x PCE-HT 225E durometer
• 1x USB cable
1x PC software1x Grindstone for rough surfaces
• 4x AAA Alkaline batteries
• 1x Carrying case
• 1x User manual
