• Measures: air pressure (up to 0.7252 psi), Air Speed (1 - 80 m/s), Flow rate (0 - 99999 m3 / min), Temperature (32 - 122 F)
• Zero, minimum, maximum, average, record and hold functions
• Stores to memory up to 99 measurement values per parameter
• Measures air speed, air pressure, airflow
• Displays ambient temperature
• Dual display on the LCD
• Internal memory for 99 measurement values per parameter
• USB cable included
• Real-time and pitot tube measurements
• 2 connecting hoses - each 85 cm (33.46 in)

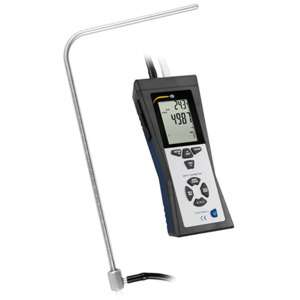

The PCE-HVAC 2 is a high-velocity multifunction manometer with a pitot tube. This portable manometer can be used to determine air speed, air pressure, air flow, differential pressure and ambient temperature. The pitot tube allows access through tiny openings to take measurements in small pipe systems and other confined spaces.

• Measures air velocities up to 80 meters per second (m/s)
• Zero, minimum, maximum, average, record and hold functions
• Stores to memory up to 99 measurement values per parameter

Stored measurement values can be called or read out later on the device itself or on the computer. The transfer to a computer works easily via a USB interface. A real-time measurement can also be carried out via this interface. When a USB connection is established, the measured values are displayed on the computer screen using the downloadable PC-compatible software. In addition to an ergonomic design, the anemometer boasts a backlit display that enables use in low-light conditions. The PCE-HVAC 2 has a thread on the bottom, so the device can be mounted on a tripod. The measuring hoses are inserted at the top of the device allowing for connection to the pitot tube.

What's in the Box

• 1x Multifunction Manometer PCE-HVAC 2
• 1x Pitot tube (angled)
• 1x USB cable
• 1x Carrying case
• 1x Software
• 2x Connecting hose (85 cm each)
• 1x 9V Block battery
• 1x Instruction manual
