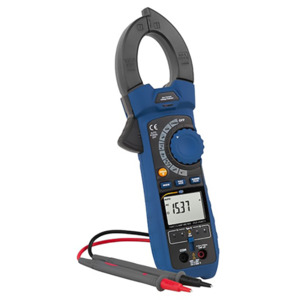

PCE Instruments PCE-HVAC 6 Clamp Meter (1000 A AC)

Our Part #20000793

Mfr Part #PCE-HVAC 6

PCE Instruments PCE-HVAC 6
PCE Instruments
PCE Instruments

PCE Instruments PCE-HVAC 6 Clamp Meter (1000 A AC)

Our Part #20000793

Mfr Part #PCE-HVAC 6

$92.00EACH

  • Current measurement up to 1000A AC and DC
  • Voltage measurement up to 50 Mega Ohms
  • Capacitance measurement range up to 5 mF
  • Frequency measurement range up to 10 MHz
  • Duty cycle range: 5 - 95%
  • Temperature measuring range: -148 - 1832 F
  • Clamp diameter: Maximum of 48 mm (1.9 in)
  • Temperature measurement via 2 thermocouples (Type K)
  • Display & measuring point illumination
  • Non-contact voltage detection

The PCE-HVAC 6 clamp mete was specially developed for the tradesman in the field of heating, ventilation and air conditioning technology. This clamp meter is ideal for many inspection and maintenance jobs in this area. This clamp meter combines many gauges in one. It is possible with this meter to measure currents up to 1000 A in the DC and AC range via the clamp. Furthermore, voltages up to 600V AC / DC can be determined exactly. For quick and easy testing of electrical conductors, the clamp meter is equipped with non-contact voltage detection.

The PCE-HVAC 6 clamp meter can also measure resistors and capacitors. The diode test and continuity test complete the series of electrical measuring functions of the clamp meter. As a special feature, the PCE-HVAC 6 clamp meter has 2 measuring inputs for Type-K thermocouples. With the help of these thermocouples, for example, the flow and return temperature of heating systems can be measured.

The clamp meter was developed for the everyday life of a service worker. The sturdy plastic housing withstands shocks easily. A circumferential rubber coating on the housing of the PCE-HVAC 6 helps ensure that the clamp meter is secure in the hand, even when the technician wears gloves. The display is equipped with an LED backlight, which facilitates reading in dark environments. As a further highlight, the clamp meter on the plier's tip has a measuring point illumination.

What's in the Box

  • 1x Clamp meter PCE-HVAC 6
  • 2x Test leads
  • 1x Transport bag
  • 1x 9V Block Battery
  • 1x Instruction manual

BrandPCE Instruments
Maximum AC Current1000 A
Maximum DC Current1000 A
Maximum AC Voltage600 V
Maximum DC Voltage600 V
Maximum Jaw Opening48 mm
TypeAC/DC
True RMSYes
ApplicationsHVAC
Battery Type9V Block
Display Count50000
Frequency Range0.0001-10 MHz
Height3.00"
Length1.60"
Power SupplyBattery Powered
Safety RatingCE, CAT2, CAT3
Warranty2 Years
Width9.00"
$92.00EACH
