PCE Instruments
PCE Instruments

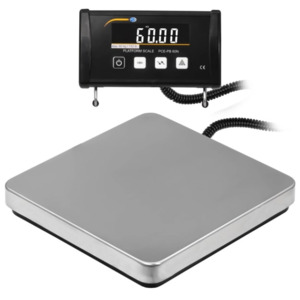

PCE Instruments PCE-PB 60N Weighing Platform Scale (60 kg Max Capacity)

Our Part #20000859

Mfr Part #PCE-PB 60N

PCE Instruments PCE-PB 60N
PCE Instruments
PCE Instruments

PCE Instruments PCE-PB 60N Weighing Platform Scale (60 kg Max Capacity)

Our Part #20000859

Condition:New

Mfr Part #PCE-PB 60N

$232.00EACH

Condition:New

  • Max capacity: 60 kg (132 lbs)
  • Readability: 20 g (0.7 oz)
  • Weighing plate dimensions: 300 x 300 x 45 mm (11 x 11 x 1.7 inches)
  • Digit height: 20 mm (0.78 inches)
  • Bidirectional USB interface
  • PEAK function (maximum value display)
  • Piece counting function with reference number of pieces
  • Multiple tare
  • Function for level control (drum weighing)
  • Spiral cable can be extended to approx. 1.5 m (59 inches)

The PCE-PB 60N Checkweighing scale of the PCE-PB N series is a versatile platform scale. The functions of the checkweighing scale are very extensive, but one function is particularly interesting for shipping. It is the bidirectional USB interface of the checkweighing scales that enables control by the PC. However, the checkweighing scales of the PCE-PB N series can be used with the optional, inexpensive "ProCell" software. This software simulates keyboard input, similar to a scanner. With the help of this software, the checkweighing scale can then transfer the weight value into active fields.

Another advantage of this checkweighing scale is the wired display. The display is supplied with a stand, but it is also suitable for wall mounting. Other interesting functions of the checkweighing scales are the piece counting function, PEAK hold function, function for level control, measuring units such as kg / lb / N (Newton) / g, adjustable background lighting, adjustable automatic switch-off and the option to operate the scales with power pack or batteries.

What's in the Box

  • 1x Checkweighing Scale PCE-PB 60N
  • 1x Display stand
  • 1x USB interface cable (approx. 1.5 m / 60")
  • 1x Power supply unit
  • 1x Instruction manual

BrandPCE Instruments
Battery Type1.5V AA
Height1.70"
IO InterfaceUSB
Length11.00"
Power Supply9V Power Supply/Battery Powered
Safety RatingCE, FCC, RoHS
SeriesPCE-PB Series
StyleBench
Units of Measurementkg, g, lb/N (Newton)
Warranty2 Years
Width11.00"
