• Pressure measuring range: -100 - 2000 kPa
• Temperature measuring range: 0 - 50 C (32 - 122 F)
• Relative pressure measurement
• Datalogger with 1024 memory slots with 1 s to 24 selectable recording intervals
• Leakage test
• Speed/flow (root function)
• MIN MAX HOLD functions
• Integrated temperature measurement
• Measurement units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
• Graphic LCD display with backlight

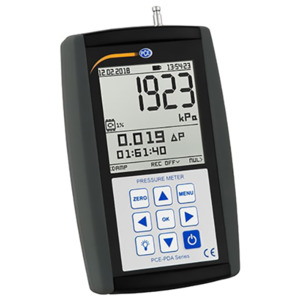

The PCE-PDA 1000L Relative pressure manometer PCE-PDA 1000L measures the relative pressure on machines and systems. The relative pressure is measured by this pressure manometer in the range between -100 ... 2000 kPa. The relative pressure manometer has a quick coupling connection with which the air pressure or water pressure can be directly applied to the device. In addition to the measurement in kPa, many other pressure units are available to the user. The large LCD on the relative pressure manometer continuously visualizes the measured values. It is also possible to freeze the maximum or minimum measured value in the display via the Max-Min-Hold function. Likewise, the relative pressure manometer in the second display area optionally displays the system temperature or a pressure difference if a leak test has been carried out.

The PCE-PDA 1000L relative pressure manometer has a data logger. The memory has 1024 memory locations. Recordings of up to 255h can be stored in each memory location. To evaluate the stored measured values, the software is available for the relative pressure manometer. The pressure manometer for relative pressure is supplied by 2 AA batteries. Here the user can either use batteries or rechargeable batteries. In battery operation, the relative pressure manometer PCE-PDA 1000L can be charged via a micro-USB port.

What's in the Box

• 1x Manometer PCE-PDA 1000L
• 2x 1.2V NiMh batteries
• 1x USB power adapter
• 1x Micro USB Cable
• 1x Instruction manual
