- Camera specs: 1MP resolution; 4mm (Diameter)
- Cable specs: 1.5m (Length); 8mm bend radius
- Lighting: Adjustable LED
- Display: 5in LCD 16:9
- Interface: Micro USB; HDMI (video output)
- Industrial handheld scope with 4-way camera, ideal for machine parts, cavities, inaccessible areas
- Small diameter camera head of 4mm
- IP67 waterproof camera probe
- Stores recorded images, videos directly to an SD card (included)

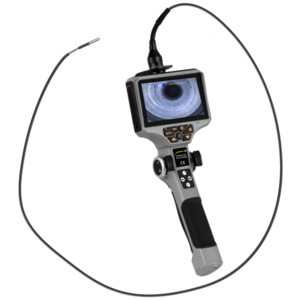

The PCE Instruments PCE-VE 400N4 inspection camera has a 1.5m (4.9ft) long endoscope cable. With a diameter of only 4mm, cavities with the smallest access can be viewed with the help of this inspection camera. The camera head of the inspection camera can move freely in 4 directions. Especially in the maintenance of engines, turbines, etc., the high-resolution display from the inspection camera offers a good view of cavities and hard-to-reach places. The moveable camera has a resolution of 1,000,000 pixels. The field of view is 90°, which means that with a relatively short distance to the object to be inspected, very large images can still be taken with the inspection camera. All recordings from the inspection camera can be saved as an image or video. This helps to document damage to components precisely.
The PCE-VE 400N4 inspection camera is supplied with a Li-Ion battery and can optionally also be operated with a power pack. The degree of protection from the camera cable is IP67. As a result, the inspection camera can also be used in difficult and harsh industrial environments.
PCE-VE 400N4 Features
- 4mm diameter camera head
- 1.5m (4.9ft) cable
- Lithium-ion battery 3350mAh
- 5" LCD 16:9
- IP67 protection rating
- Adjustable LED lights
What's in the Box
- 1x Videoscope PCE-VE 400N4
- 1x Power supply including charger
- 1x Card reader
- 1x Memory card
- 2x Li-Ion batteries
- 1x HDMI cable
- 1x Cleaning set
- 1x Carrying case
- 1x User manual
