SHA850-DMA - Digital Modulation Analysis Option

Highlights:

• For use with Siglent SHA851A/SHA852A
• Modulation types ASK/FSK/PSK/MSK/QAM

Frequency ranges for this option are:

• SHA851A: 2 MHz - 3.6 GHz
• SHA852A: 2 MHz - 7.5 GHz

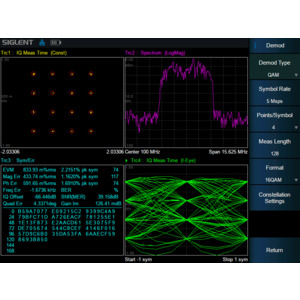

The Siglent SHA850-DMA is the digital modulation analysis (ASK/FSK/PSK/MSK/QAM) option for SHA851A and SHA852A analyzers. Through digital signal analysis, a series of indicators such as error vector magnitude, magnitude error, and phase error can be obtained.
