Fluke FLUKE-393 Clamp Meter, Trms, 1500 V, iFlex, Cat 3, 393 Series
Our Part #20001562
Mfr Part #FLUKE-393
Fluke FLUKE-393 Clamp Meter, Trms, 1500 V, iFlex, Cat 3, 393 Series
Our Part #20001562
Condition:NEW
Mfr Part #FLUKE-393
Condition:NEW
- Description
- Specifications
- Documents
FLUKE-393 Clamp Meter (No FC)
Features and Specifications
- True-rms ac current (up to 1000 AAC with jaw measurement) and voltage (up to 1000 VAC)
- DC current (up to 1000 ADC) and voltage (up to 1500 VDC)
- Work efficiently with DC power measurement, audio polarity and visual continuity
- Dual display with backlight
- Automatic power off after 20 minutes
- Does not include Fluke Connect (FC) wireless feature

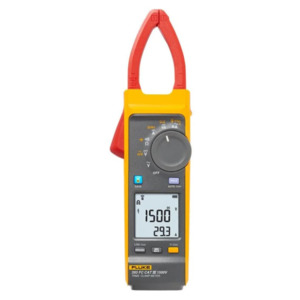

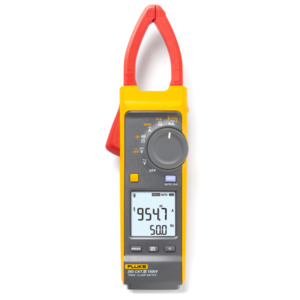

The Fluke 393 Clamp Meter is a rugged, True-RMS device designed for professionals working in high-voltage DC environments like solar arrays, wind power systems, and data centers. It measures up to 1500 V DC, 1000 V AC, and 999.9 A through its clamp jaw. Its thin jaw design allows easy access in tight spaces, and it’s rated CAT III 1500 V for maximum safety. For technicians who need to track and share measurements digitally, consider using the Fluke 393 FC instead which adds wireless connectivity for data logging and reporting via Fluke Connect.
393 Series - The World’s Only CAT III 1500 V Current Clamp
The Fluke 393 Series Clamp Meters with iFlex are purpose-built for professionals operating in demanding DC environments up to 1500 V, such as solar installations, wind energy systems, electric rail networks, data centers, and battery banks for uninterruptible power supplies. With a CAT III 1500 V safety rating and the ability to display DC power measurements in kilovolt-amperes (kVA), these meters ensure both precision and protection. Their IP54 rating makes them well-suited for outdoor use, especially in renewable energy settings. Rugged, reliable, and versatile, Fluke delivers a clamp meter to meet the needs of every technician.
Measurements | Fluke 393 | Fluke 393 FC |
|---|---|---|
AC | 1000 V | 1000 V |
DC | 1500 V | 1500 V |
Features | ||
True-rms ac current | Yes | Yes |
Min, Max, or Avg measurement | Yes | Yes |
Continuity and resistance | Yes | Yes |
Capacitance | Yes | Yes |
Inrush measurement | Yes | Yes |
Hazardous voltage indicator | Yes | Yes |
Data logging | No | Yes |
Clear memory | No | Yes |
Remaining memory | No | Yes |
Fluke Connect | No | Yes |
When used with the detachable iFlex (Flexible Current Probe) the clamp meter expands the measurement range to 2500 AAC. The high-performance AC Probe uses the Rogowski principle for accurate, nonintrusive measurement of sinusoidal, pulsed, and other complex waveforms. The flexible and lightweight measuring head allows quick and easy installation in hard-to-reach areas and works well with large conductors.
What's in the Box
- 393 Clamp Meter
- TL1500DC 1500 V Test Lead Set
- i2500-18 iFlex Flexible Current Probe 18 in (46 cm)
- TPAK80-4-8001 Strap 9 in (23 cm)
- TPAK80-4-2002C Magnet
- 37x Carry Case
