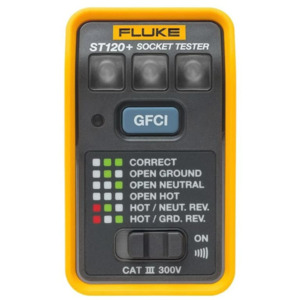

Fluke ST120+ Socket Tester

Features and Specifications

• Rated operating voltage: 110 V ac to 125 V ac
• Wattag:e 0.3 W
• Frequency: 50/60 Hz
• GFCI Test: Yes
• Audible Beeper: Yes
• Indicator Lights: 1 red, 2 green LEDs
• Rating: 300 V CAT III
• Warranty: Two years

ST120+ Overview

The ST120+ not only provides a GFCI test button but also offers a distinctive audible warning whenever voltage is detected. This feature can help you save time when trying to determine the connection between a circuit breaker and an outlet. Simply plug in the socket tester, walk over to the circuit breaker panel, and listen for the beeper to either switch off or on as you toggle the breakers. Once it does, you've identified the right breaker, saving you time and effort.

Plus, when activated, the built-in beeper can warn you of dangerous voltage at the outlet, even if the wiring is faulty. If you're in an environment like an office or hospital where you don't want to disturb others, there's no issue - the beeper can be turned off.

ST120 Series Features

• Simple operation
• Integrated GFCI test
• Handy chart identifies wiring conditions
  • Correct installation
  • Open ground
  • Open neutral
  • Open hot
  • Hot/neutral reversed
  • Hot/ground reversed

The Fluke ST120+ GFCI Socket Tester with beeper and the ST120 GFCI Socket Tester are designed to ensure that all wires in an outlet are correctly linked to the building's electrical grid. With the help of vivid LEDs and an accompanying chart displayed on the tester's front, you can swiftly and effortlessly confirm an outlet's wiring. These testers are capable of detecting a variety of typical wiring mistakes, such as inverted phase and neutral wires, as well as an open ground, providing you with assurance.

What's in the Box

• ST120+ Socket Tester
