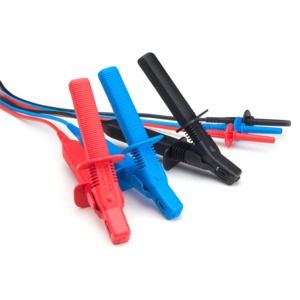

Megger 1002-647 Test Lead Set

Features and Specifications

• Clip dimensions: 220 (L) X 140 (closed) mm
• Jaw opening: 34 mm diameter max
• Number in set: 3
• Basic insulation rating: 10-12 kV DC
• Safety specification: IEC61010-31:2008
• CAT rating: 600 V AC CAT IV
• Cable type: Flexible dual insulated silicon
• Lead length: 10 m (33 ft)

The clips of the 1002-647 are designed for clamping on larger diameter test pieces. The insulation is designed only to protect the user from the output of Megger 5 kV and 10 kV (set below 10 kV) insulation resistance testers.
