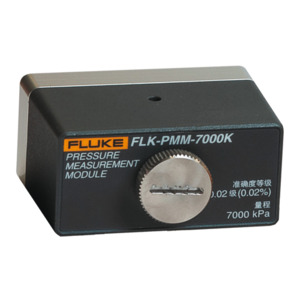

Fluke FLK-PMM-7000K Pressure Module

Features and Specifications

• Pressure type: gauge
• Range: (-13 to 1000) psi / (-90 to 7000) kPa / (-0.90 to 70) bar
• Resolution: 0.01 psi / 0.01 kPa / 0.0001 bar
• Compatible with: 729 Pro 7M

Pressure Modules for the 750P Series Calibrator

Designed specifically for process technicians to simplify pressure calibration, the Fluke 729 Pro provides faster, more accurate test results. Its use of replaceable plug-in pressure control modules allows users to freely switch the pressure output range to achieve range matching without having to buy a complete new calibrator.

The 729 Pro's built-in HART communication capabilities enable HART transmitter mA adjustments. This communication permits mA output trim, trimmed to applied values, and pressure zero trimming of HART pressure transmitters. Users can easily change a transmitter tag, measurement units and ranges. Other supported HART commands include setting fixed mA outputs for troubleshooting, reading device configuration parameters and reading device diagnostics.

What's in the Box

• PMM-200KA Pressure Module
