Siglent SDS822X HD MSO Oscilloscope, 2 Channel, 200MHz, 2GS/s, 50Mpts, 12 bit, SDS800X HD Series

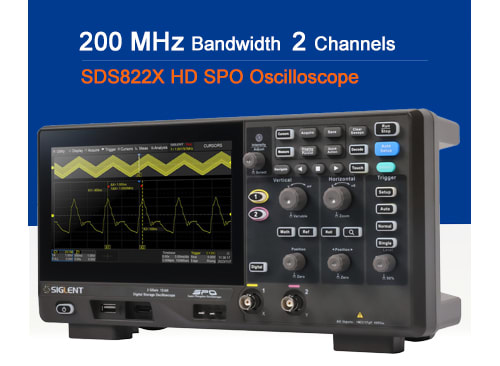

Siglent SDS822X HD Mixed Signal Oscilloscope

The SDS822X HD is a high-performance Mixed Signal Oscilloscope (MSO) featuring a 200 MHz bandwidth and a maximum sample rate of 2 GSa/s. It includes two analog channels, providing a versatile platform for a wide range of applications. Each channel is equipped with a standard passive probe to ensure reliable and consistent measurements. For users seeking advanced functionality, the SDS822X HD offers an optional digital module with 16 channels, a maximum sample rate of up to 1 GSa/s, and a record length of up to 10 Mpts.

The instrument’s memory depth varies by operating mode: 100 Mpts/ch in single-channel mode, 50 Mpts/ch in two-channel mode, and 25 Mpts/ch in four-channel mode, giving users flexibility to meet different requirements. Its waveform capture rate is equally impressive, reaching up to 120,000 wfm/s in normal mode and 500,000 wfm/s in sequence mode, ensuring accurate and efficient data collection. With its robust features and flexible options, the SDS822X HD is a powerful tool for any engineer’s toolkit.

Features

• 200 MHz Bandwidth

• 2 analog channels; 16 digital channels (optional)

• 12-bit High Resolution

• 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s

• Waveform Capture Rate: up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)

• Front ends with 70 µVrms noise floor at 200 MHz bandwidth

• SPO technology provides excellent signal fidelity, performance and lower system noise

• Supports 256-level intensity grading and color temperature display modes

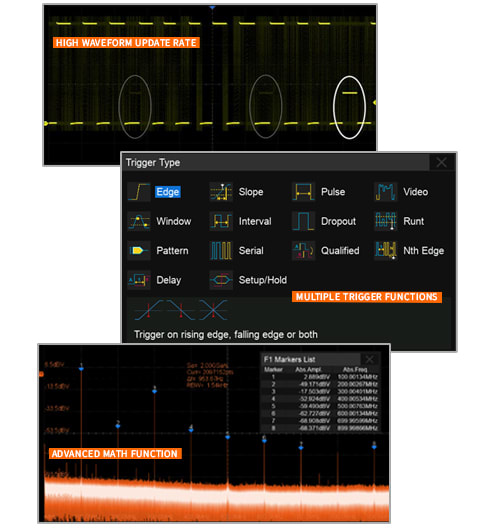

• Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported) , Qualified, Nth edge, Delay, Setup/Hold time

• Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN

• Up to 100 Mpts record length

• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event

• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames

• Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref

• 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor

• Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis

• High Speed hardware-based Mask Test function, with Mask Editor tool for creating user defined masks

• 25 MHz waveform generator (optional)

• 7-inch TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures

• USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out

• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard. Supports NTP

SDS800X HD Series Overview

SIGLENT's SDS800X HD series high-resolution digital storage oscilloscopes are based on 2GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance. They are available in bandwidths of 200 MHz and 100 MHz, have maximum record length of 100 Mpts, and display 2/4 analog channels + 16 digital channels mixed signal analysis ability.

Options for the SDS800X HD Series (Sold Separately)

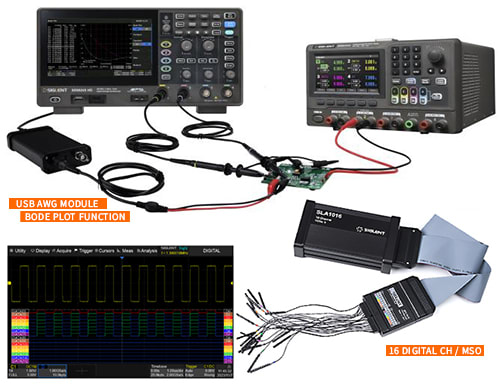

SAG1021I Waveform Generator (Uses SDS800XHD-FG Software)

The SDS800X HD series can control the SAG1021I isolated USB Function/Arbitrary waveform generator to output waveforms with up to 25 MHz frequency and ±3 V amplitude. Six basic waveforms plus multiple types of arbitrary waveforms are built-in: Output Sine, Square, Ramp, Pulse, Noise and DC. Access and edit using EasyWave PC software.

• Bode Plot functionality

• Vari-level mode for Power Supply Control Loop Response (PSRR)

SLA1016 16 Digital Channels (Uses SDS800XHD-16LA Software)

The SLA1016 is an optional MSO accessory. It consists of a logic module, probe set, and connection cables which allow the user of the scope to add (16) channels of digital measurement. This allows for the exploration of more complex digital designs (e.g., parallel data busses, sequential logic, etc.) while maintaining the same timebase as the analog measurements.

• Measure digital logic levels up to 5.0VDC

• Preconfigured thresholds for TTL, CMOS, LVCMOS3.3, and LVCMOS2.5

• Sampling rate of 1GSa/s and 1.4Mpts deep memory

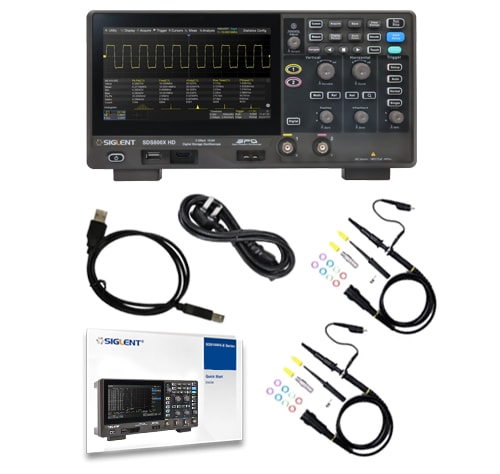

What's in the Box

• SDS822X Oscilloscope

• USB cable - 1

• Quick start - 1

• Passive probe - 1/channel (PP215)

• Power cord - 1

• Certificate of calibration - 1 (not shown)
