Fluke SOL-DMM87V-KIT Solar Toolkit: I-V Curve Tracer, Solar Clamp Meter And DMM

Features and Specifications

• PVA-1500HE2 I-V Curve Tracer
  • DC Voltage: 1500V
  • Current: 30A DC (Module Efficiency <19%)
  • Maximum Current (Isc): 30A DC (Module Efficiency ≥19%)
  • Operating Temperature: 0 - 45 degrees C (32 to 113 degrees F)
• 393 FC Solar Clamp Meter
  • 1000 VAC / 1500 VDC Max voltage between terminal & earth ground
  • True-rms
  • CAT III rating
  • Jaw opening: 34 mm
• 87V Digital Multimeter
  • AC/DC Voltage: 1000V
  • AC/DC Current: 10A
  • Frequency: 200 kHz

Fluke's SOL-DMM87V-KIT is a comprehensive toolkit. The kit includes the Fluke Solmetric PVA-1500HE2 I-V Curve Tracer, Fluke 393 FC Solar Clamp Meter and Fluke 87V Digital Multimeter.

PVA-1500HE2 I-V Curve Tracer Overview

The PVA-1500HE2 Curve Tracer with Sol Sensor for PV Modules is an advanced device designed to change the way utility and solar plants monitor their systems. This device can measure and display I-V curves up to 1500V and 30A, even on high-efficiency modules, delivering comprehensive and precise data for peak performance.

In addition, the PVA-1500HE2 comes with integrated PV (Photovoltaic) performance modeling and advanced wireless irradiance, providing a smooth and user-friendly experience. Its temperature and tilt sensing capabilities ensure your PV modules are always operating under ideal conditions.

393 FC Solar Clamp Meter Details

The 393 FC CAT III 1500 V True-rms Clamp Meter is tailored for technicians working in dc environments up to 1500 V, such as solar arrays, wind power, electric railways, data centers, and battery banks for uninterruptible power supplies. The clamp can measure up to 1500 V dc, 1000 V ac, and up to 999.9 A dc or ac through the clamp jaw.

Other key functions of Fluke's 393 FC include an IP54 rating, suitable for outdoor work on solar arrays and wind power systems, DC power measurement, and the ability to display readings in kVA. An audio polarity indicator helps prevent accidental miswiring, visual continuity turns provide a bright green light in the display, and test results can be logged and reported via Fluke Connect software.

87V Industrial Multimeter Highlights

The Fluke 87V Industrial Multimeter (DMM) is designed for efficiency. It provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment - even in loud, high-energy, and high-altitude locations. Identify complex electrical problems quickly. It supports accurate measurements on VFDs using a low-pass filter and captures intermittents as fast as 250 uS using Peak Capture. Specially designed shielding blocks high-frequency, high-energy noise generated by large drive systems from your measurements.

The 87V's additional measurement capabilities include frequency, continuity/diode test, duty cycle, microamps, analog bar graph, relative, and reference. It also features an analog bar graph for fast changing or unstable signals and its touch hold keeps readings on display even after removing probes.

All the inputs in the 87V are updated to the third edition of the EN 61010-1 to CAT III 1000 V and CAT IV 600 V. The meter is designed to withstand spikes of more than 8000 V. An audible Input Alert warning is also provided if the test leads are placed in the incorrect input jacks for the measurement being made.

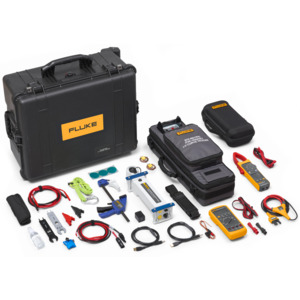

What's in the Box

• PVA-1500HE2
  • PVA HE2 unit, transit case, SolSensor and clamp, Windows application, alligator test leads, MC4 disconnect tool, chargers, Data Analysis Tool (DAT), 2x thermocouples and adhesive disks, sensor cleaning supplies
• 393 FC
  • Fluke 393 FC CAT III 1500 V TRMS clamp meter, Test leads (CAT III 1500 V rated, right angle plugs, with safety caps), iFlex 18 inch flexible current probe, TPAK magnetic hanging strap, Premium carrying case
• 87V DMM
  • Fluke 87V MAX True-rms Digital Multimeter, TL175 TwistGuard test leads, AC175 Alligator clips, 80BK-A temperature probe, Removable holster with test lead storage, Three AA batteries (installed)
