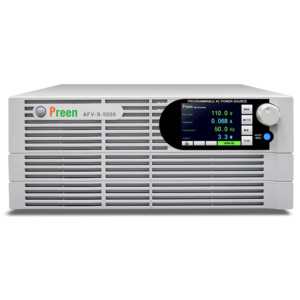

Preen AFV-S-5000 Programmable AC Power Source

Features and Specifications

• Output Power: 5000VA
• Output Voltage: 0-310 V
• Output Frequency: 40-500Hz

AFV-S-5000 Overview

Preen's AFV-S-5000 is a compact, high power density instrument housed in a 4U form factor. This device is designed to provide precise measurements and an output waveform display. Users can easily monitor various parameters such as RMS voltage, output frequency, RMS current, true power, apparent power, reactive power, power factor, and crest factor according to the product output.

The AFV-S-5000 excels in its capability to handle inrush current applications. It can deliver up to four times the peak current from RMS current, making it an ideal choice for applications that require high inrush currents.

Plus, the Preen AFV-S-5000 ensures low distortion (THD) of less than 0.3% when the output frequency is lower than 100Hz. This feature guarantees the delivery of clean and stable power to your equipment.

For added convenience, all measurements can be exported as a report via the control software. This allows for easy analysis and tracking of Equipment Under Test (EUT) performance, ensuring optimal operation and longevity of your equipment. The Preen AFV-S-5000 is not just an AC power source; it's a comprehensive solution for your power management needs.

AFV-S Series Programmable AC Power Source

The AFV-S series by Preen is a compact, programmable AC power source that offers accurate measurements. It delivers clean power at four different levels: 600VA, 1250VA, 2500VA, and 5000VA, with minimal harmonic distortion. The device can show four shortcuts out of 20 memory sets, and the voltage and frequency settings for each set are easily readable. Users can swiftly adjust and view the parameters through a 5-inch touch panel or a rotary knob, ensuring straightforward operation and measurement display.

The AFV-S series comes with several communication interfaces, including RS232, RS485, optional Ethernet, optional Analog, and optional USB. Its comprehensive remote interfaces and dedicated control software provide a user-friendly way to remotely operate the product. This makes it an excellent choice for various applications, such as home appliances, power connectors, LED lighting, automation testing in manufacturing processes, and product testing in labs.

AFV-S Series Panel Features

1. Power Switch
2. Touch Screen HMI
3. Rotary Knob
4. Output / Reset
5. AC Output Socket
6. Output Terminals
7. Remote Sense
8. RS-232/RS-485
9. Input Voltage Selector
10. PLC Remote In/Out
11. USB Interface(for firmware update)
12. Sync. Signal I/O
13. Input Socket*

*AFV-S-1250, AFV-S-2500, AFV-S-5000 have input terminals.

What's in the Box

• AFV-S-5000 Programmable AC Power Source
