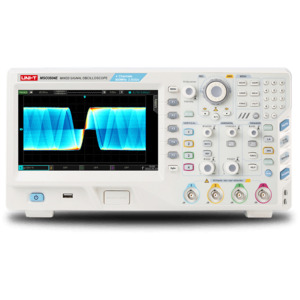

Uni-T MSO3354E-S Mixed Signal Oscilloscope w/ Signal Generator

Features and Specifications

• Bandwidth: 350MHz
• Analog Channels: 4
• Digital Channels: 16 (UT-M15 Logic probe included)
• Function Generator: 50MHz ARB Included
• Real-Time Sample Rate: 2.5GSa/s
• Memory depth: 250Mpts (1 channel), 70Mpts (all channels)
• Built-in dual-channel function arbitrary waveform generator
• Waveform Capture Rate: 200,000wfms/s
• Display: 8in Multi-point Capacitive Touchscreen
• Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), AWG, VGA
• Supports SCPI programmable instrument standard commands
• Supports web access and control

MSO3354E-S Overview

The Uni-T MSO3354E-S Mixed Signal Oscilloscope (MSO) is a remarkable instrument with a 350MHz bandwidth. This feature ensures readiness to handle a diverse range of devices and circuits, making it ideal for applications up to 70MHz and below. The oscilloscope's comprehensive FFT analysis capabilities allow for deep dives into frequency domain measurements, uncovering harmonic content, detecting distortion in measurement systems, analyzing noise in DC power supplies, and delving into vibration analysis.

The MSO3354E-S is not just about bandwidth and analysis; it's also about precision. It offers a wealth of advanced trigger options, including edge and pulse width triggers, video, ramp, runt pulse, and more. The area trigger feature further enhances signal capture capabilities, allowing for efficient capture of various complex characteristic signals.

Quality control is streamlined with the pass/fail test function, which identifies any measured signal falling outside established high and low limits. The UT-M15 probe simplifies digital signal analysis with its user-friendly design and exceptional electrical characteristics.

Beyond its primary role as an oscilloscope, the Uni-T MSO3354E-S doubles as a frequency counter and a digital voltmeter (DVM), offering multi-channel independent AC/DC true RMS measurements. Its full-memory hardware decoding ensures lightning-fast decoding performance, even with deep storage of 250Mpts.

The built-in dual-channel function arbitrary waveform generator in the MSO3354E-S can output sine wave, squarewave, ramp wave, pulse wave, arbitrary wave, noise and DC. The maximum frequency output of sinewave is 50MHz.

The MSO3354E-S oscilloscope provides a substantial memory depth of 250Mpts (1 channel), 70Mpts (all channels), maintaining a high sampling rate across a wider time base range while preserving the overall waveform and intricate details. The Multi-Scopes technology facilitates user-friendly waveform analysis, allowing customization of each channel with different frequency, amplitude, and waveform settings.

The Ultra Phosphor display technology enables observation of waveforms and occasional abnormalities over extended periods. The oscilloscope achieves an impressive ultra-high capture rate of 200,000wfms/s in normal sampling and a staggering 1,000,000wfms/s in Fast Acquire mode.

The XY mode cursor measurement function expedites phase difference measurements between two signals, and the oscilloscope provides access to 36 automatic parameter measurements. The 8-inch touch screen supports various gesture operations, ensuring smooth and convenient measurement actions. This intuitive interactive experience allows users to master the oscilloscope quickly while retaining traditional button and knob operation options. Overall, the Uni-T MSO3354E-S Mixed Signal Oscilloscope paints a picture of a versatile, precise, and user-friendly instrument that is a valuable addition to any toolkit.

MSO/UPO3000E Series MSO Panels

MSO/UPO3000E Series

The Uni-T MSO/UPO3000E series is a versatile and high-performing digital phosphor oscilloscope, developed using UNI-T's proprietary Ultra Phosphor 2.0 technology. This device is user-friendly, provides superior technical specifications, and offers a multitude of features. It aids users in accomplishing measurement tasks more efficiently. This oscilloscope is engineered to cater to a wide range of design, debugging, and testing requirements across various sectors, including communication, semiconductor, computing, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, research and development, and education. Its Fast Acquire technology enables it to precisely detect anomalies such as video, jitter, noise, and low wave signals.

What's in the Box

• MSO3354E-S Mixed Signal Oscilloscope
• Power Cord
• USB data cable
• BNC to BNC cable
• BNC alligator clip cable
• Passive Probe
• Logic analyzer probe
